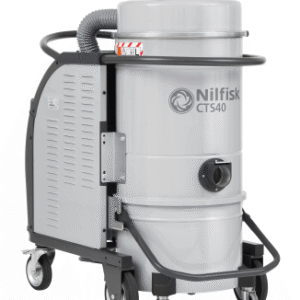

Nilfisk CTS40 LC Z22 EXA Vacuum – 400V – (ATEX Certified)

£5,808.03

The CTS40 LC Z22 EXA is a compact ATEX-certified vacuum designed for Zone 22 environments. Featuring Class L filtration and an anti-static build, it provides reliable performance for general industrial dust collection.

Supported payment types:
Payments Image

Overview

The CTS40 LC Z22 EXA is a powerful, industrial-grade ATEX-certified vacuum cleaner designed for demanding applications in Dust Zone 22 environments. Built to handle high volumes of dust and debris, this 400V unit delivers strong and consistent performance, making it ideal for use in manufacturing facilities, production lines, and heavy industrial settings.

Equipped with a 4kW motor, the CTS40 provides high airflow and vacuum pressure, ensuring efficient extraction of dust, powders, and granular materials. Its robust construction and large 50-litre collection bin allow for extended operation with minimal downtime, making it well suited to continuous or intensive cleaning tasks.

The unit features a Class L filtration system with a large 19,500 cm² filter surface area, designed for effective collection of general industrial dusts. A manual filter shaker system enables quick and efficient filter cleaning, helping to maintain consistent suction and reduce maintenance interruptions.

Built with safety in mind, the CTS40 LC Z22 EXA is ATEX certified for use in hazardous dust environments and incorporates anti-static properties to reduce the risk of ignition. Its heavy-duty design, combined with industrial mobility, ensures both durability and practicality in challenging working conditions.

  • Category 3 equipment – Suitable for use in Dust Zone 22 – Designed for safe operation in hazardous environments
  • High-performance 4kW motor – 400V power supply – Delivers powerful airflow and suction for demanding applications
  • Class L filtration system – Large 19,500 cm² filter area – Suitable for general industrial dust collection
  • Manual filter shaker – Maintains consistent performance – Reduces downtime and improves efficiency
  • Heavy-duty construction – Built for industrial environments – Ensures long-term reliability
  • Large 50L capacity – Minimises emptying frequency – Ideal for high-volume cleaning
  • Industrial mobility – Mounted on durable wheels – Allows easy positioning in large facilities
  • ATEX certified design – Anti-static construction – Enhances safety in explosive dust environments

Product Features

Feature Details
Product Type Three-phase ATEX industrial dry vacuum cleaner
Manufacturer Nilfisk
Model CTS40 LC Z22 EXA
SKU / Product Number 4030600419
Power Source 400V three-phase electric
Frequency 50 Hz
Rated Power 4 kW
ATEX Classification Category 3 / II 3D
Suitable ATEX Zone Dust Zone 22
Application Combustible dust and general industrial dust in classified Zone 22 environments
Dust / Filter Class Class L
Use Type Dry industrial dust and debris collection
Container Capacity 50 litres
Maximum Airflow 420 m³/h / 7,000 L/min
Maximum Vacuum 23 kPa / 230 mbar
Main Filter Area 19,500 cm²
Filter Cleaning Manual filter shaker
Sound Pressure Level 65 dB(A)
Inlet Diameter 70 mm
IP Protection IP55
Insulation Class Class F
Dimensions (L × W × H) 1050 × 600 × 1250 mm
Weight Approx. 114 kg
Duty Rating Continuous duty / suitable for 24/7 operation
Container Design Removable collection container
Safety Construction Anti-static / EXA configuration for combustible dust environments
Filter Monitoring Vacuum gauge for monitoring filter performance
